| Application area | Type | Cable | Conductor cross-section (mm²)* | Crossed conductor cross-section (mm²) | Max. outer sheath diameter (mm) |
|---|---|---|---|---|---|
| 12 kV | M75 | Polymeric / PILC (1-core) | 95 - 630 mm | N/A | 72 mm |
| Polymeric / PILC (3 x 1-core) | 35 - 150 mm | N/A | 33 mm | ||
| Polymeric / PILC (3-core) | 35 - 150 mm | 35 - 120 mm | 72 mm |

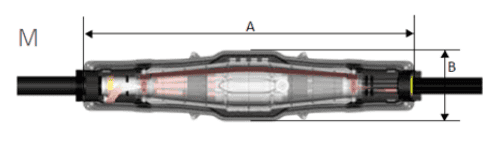

| Dimension A | Dimension B | Test certificates | |
|---|---|---|---|
| 1048 | 218 |  | CENELEC HD 629 (1) CENELEC HD 629 (2) CENELEC HR 629 (3) E DIN EN 60455 IEEE 404 |
* Please note: the diameter of the outer sheath and the supplied cable modules is decisive.
LoviSil® Transition Joint M75 (6/10/12kV)

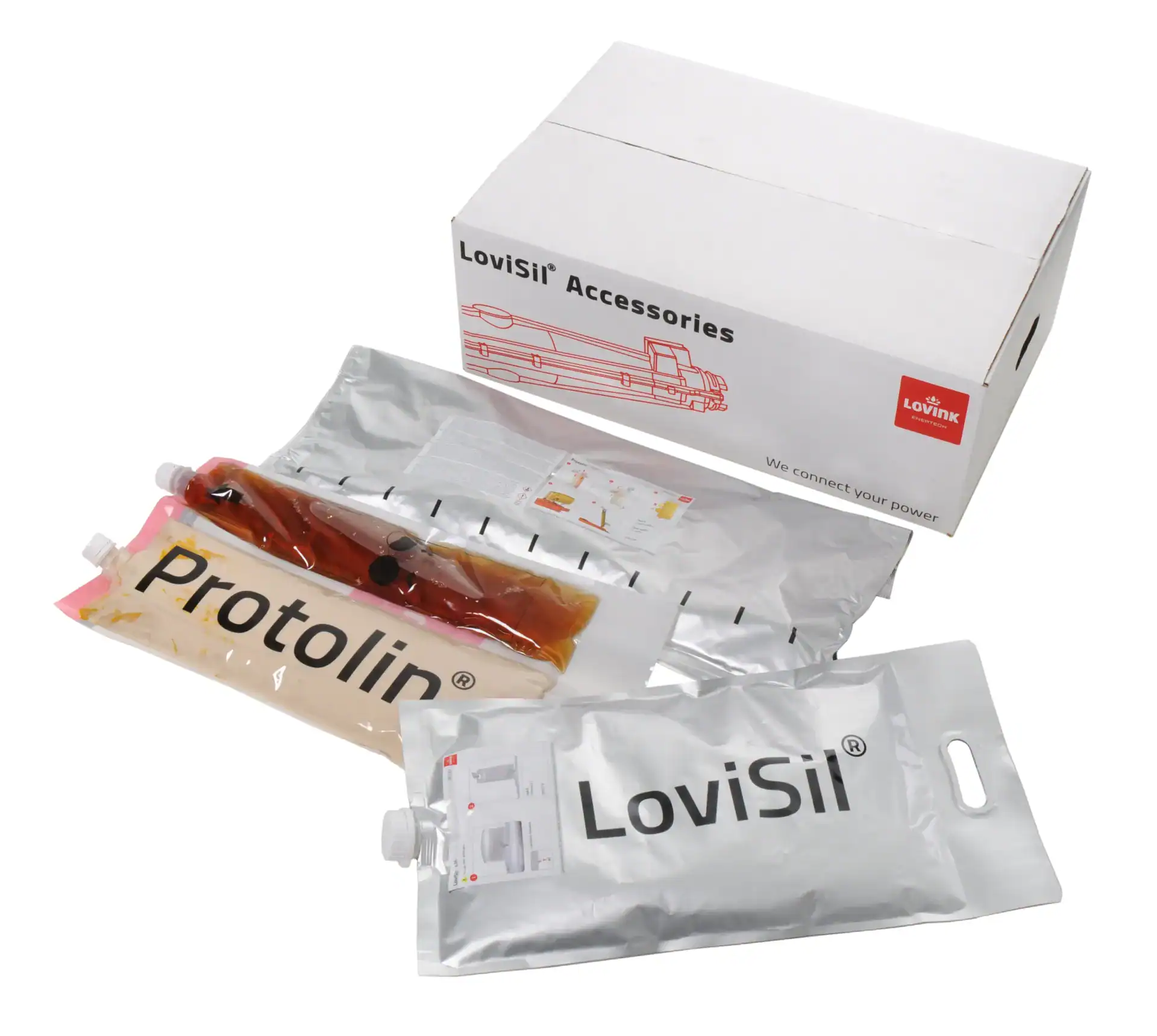

| Parts | Base module: inner joint, outer joint, tube set, earth screen, push on applicator, tape, cable cleaning tissues. Separately: connector(s), resin module(s) & cable modules. |
|---|---|
| Origin | Netherlands |
| Packaging | Box |
| Shelf life | 24 months |
| Length (mm) | 1062 |
| Width (mm) | 232 |
| Height (mm) | 253 |
