Cable Joints for Renewable Energy Projects
Wind farms, solar (photovoltaic) parks and battery energy storage systems (BESS) often have multiple kilometers of underground Medium Voltage (MV) cables which need to be connected using cable joints. These Medium Voltage cable joints are a critical component for ensuring electrical continuity, mechanical protection and lasting insulation performance under variable loads and demanding conditions.
This page provides a full overview for electrical engineers and project managers from EPC contractors and electrical subcontractors working on wind, solar, and BESS electrical networks.
→ Why renewable energy puts cable joints under pressure
→ Medium voltage challenges specific to wind, solar and BESS
→ Selecting the right cable joints for renewable energy projects
→ Most common jointing technologies and where they fit
→ Most common reasons for failures in cable joints
→ Lovink cable joints for wind, solar & BESS
→ Training and support for reliable cable jointing in renewable energy projects
→ Take the next step towards reliable renewable energy grid connections
Why renewable energy puts cable joints under pressure
Most cable joint failures in renewable projects aren’t caused by bad products. They’re caused by cable joints applied in conditions they weren’t engineered for.
Renewable energy networks behave differently from traditional utility networks. Generation is intermittent, which means cables heat and cool repeatedly throughout the day. Load profiles vary significantly depending on wind speed, irradiance or storage dispatch cycles. Over time, this thermal cycling creates mechanical stress in the cable and cable joint; stress that some joints may not be designed to handle.
Add to that the reality of how these projects are built. Cable joints are installed underground, often in tight pits, under schedule pressure, by teams who may be working across multiple sites simultaneously. Once the cable route is backfilled, there is no practical way to inspect or correct what’s underground. A joint that was installed 99% correct will eventually fail and when it does, the cost isn’t the joint. It’s the excavation, the downtime, and all the other knock-on effects across the project.
Medium voltage network challenges specific to wind, solar and BESS
Different renewable energy projects share common jointing challenges, but each may have its own specific demands.
Onshore wind: Inter-array cable networks in wind farms carry highly variable loads. As wind speed changes, current through the cables, and through every joint, changes with it. Underground routes to substations can be long, with cable joints at regular intervals that will see decades of service without inspection.
Utility-scale solar: Solar parks typically involve a high volume of medium voltage feeder connections installed in a short timeframe. Quality consistency across a number of joints is the primary risk. One poorly installed joint will eventually become the weakest point in the network.
BESS systems: Load cycling is more frequent and predictable in most cases, but intense. The high thermal cycling demands cable joints that are both electrically strong and thermally robust.
Selecting the right cable joints for renewable energy projects
The cables voltage level and conductor cross-section are a starting point, not the finish line. For renewable energy applications, the selection criteria that tend to be underweighted are:
Thermal performance under cycling loads: A joint that performs well under steady-state load may degrade faster under the repeated expansion and contraction of a renewable grid. Look for jointing technologies that perform well in cyclic load conditions, not just rated continuous current.
Installation environment: Underground cable joints in waterlogged or contaminated soil need robust, long-term sealing. Furthermore, Project layout and design affect which jointing technologies are phisically practical. These are project-specific constraints that must drive selection, not be accommodated after the fact.
Installation consistency: In projects with multiple installation teams or less-experienced jointers, the ease-of-installation and repeatability of the jointing process matters as much as the product itself. The right choice depends on your team’s experience, your quality control process on site, and the right guidance and/or training from the supplying manufacturer.
Service life and maintenance access: If a joint will be underground for 30+ years with no realistic possibility of inspection, its design maring needs to reflect that. A cable joint selected on unit price alone may be the most expensive decision you make on the project.
Most common jointing technologies and where they fit
There are various cable jointing technologies used in renewable energy projects, below you will find the most common once:
Cold-shrink joints: Pre-expanded silicone or EPDM sleeves that contract onto the cable by means of a spirale – no heat. The process is relatively controlled and repeatable, making the installation itself fast and the installation quality less dependent on the jointers skill. However, some cold shrink joints are known to have more water ingress issues compared to other technologies.
Heat-shrink joints: Widely used across traditional grid applications and favourable because of a generally lower price level. Performance is reliable when correctly installed, but quality is strongly dependent on the installation skills of the jointers. Additonally, thermal cycling can cause the joint to expand and contract – creating a suction effect for water plus a chance of air voids that may lead to PD’s (Partial Discharges) and hotspots.
Liquid silicone + Resin joints: Ideal for applications requiring reliable performance in high harmonic network conditions. Silicone insulation offers flexibility in cable diameter and insulation type and the resin outer protection has a high resistance to water ingress. Compared to shrink technologies this solutions provides more reliability and flexibility but at a higher cost per unit.
Use our “Product Selection Tool” to see what the best solution is for your specific situation.
Most common reasons for failures in cable joints
Based on our exprience across wind, solar and grid reinforcement projects, the failure modes we see most often are:
Thermal cycling degradation: joints not selected for the actual load cycling profile of the power network, leading to premature insulation breakdown.
Moisture ingress: inadequate sealing, particularly in joints installed in high water table or flood-prone areas. Often the result of incorrect installation or a side-effect of thermal cycling.
Screen continuity failures: incorrect or incomplete bonding of cable screens, leading to induced currents, heat generation and evenually breakdown.
Download our “Practical Overview” for a more extensive overview of the most common failure mechanisms in cable joints.

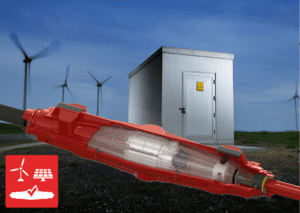

Lovink cable joints for wind, solar & BESS
In renewable energy grids, cable joints must deliver reliable insulation, mechanical strength and effective environmental sealing over the project lifetime. Lovink supports renewable energy projects with cable jointing solutions designed for reliable grid connections and predictable long‑term performance. Our solutions have been applied in wind, solar and battery energy storage.
Rather than offering me-too commodity products, Lovink focuses on application‑driven cable jointing systems. Solutions are configured to withstand the electrical load profile, installation environment and lifecycle requirements required by asset owners, EPCs, and electrical subcontractors active in renewable energy projects.
We offer several product configurations specifically developed to meet the requirements of renewable energy grids:
Training and support for reliable cable jointing in renewable energy projects
Even the most advanced cable jointing solutions require correct application to achieve reliable long‑term performance. In renewable energy projects, where installation conditions are demanding and access after commissioning is limited, training and technical support are critical success factors rather than optional extras.
Lovink supports project teams with structured training programs, installation guidance and practical on‑site support. This approach helps reduce installation risks, improve consistency across contractors and ensure that cable joints are applied correctly, documented properly and aligned with project and grid requirements.
In many renewable energy projects, training and project‑specific trials are integrated early in the execution phase. This allows jointing solutions and installation procedures to be validated under real project conditions before large‑scale deployment, reducing commissioning risk and long‑term failure probability.
Lovink support options
Take the next step towards reliable renewable energy grid connections
Reliable cable jointing in renewable energy projects requires more than selecting the right products alone. It depends on correct application, validated performance, trained installation and practical support throughout the entire project lifecycle.
Whether you are in the early design phase, preparing for installation or optimizing existing grid connections, a structured approach to cable jointing helps reduce technical risk, avoid commissioning delays and improve long‑term system reliability. By combining proven jointing solutions with training, trials and technical support, renewable energy projects can achieve predictable and sustainable grid performance.
Lovink supports project owners, utilities and contractors throughout this process — from technical advice and solution validation to training and on‑site support during installation and commissioning.
