| Application area | Type | Cable | Conductor cross-section (mm²)* | Crossed conductor cross-section (mm²) | Max. outer sheath diameter (mm) |
|---|---|---|---|---|---|
| 24 kV | M75 | Polymeric / PILC (1-core) | 95 - 240 | N/A | 72 |
| Dimension A | Dimension B | Test certificates | |
|---|---|---|---|
| 1048 | 218 |  | E DIN EN 60455 |
* Please note: the diameter of the outer sheath and the supplied cable modules is decisive.

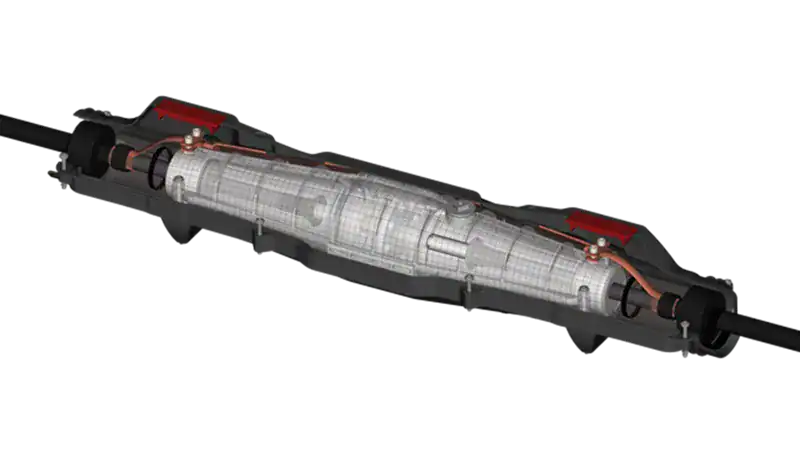

LoviSil® Straight Joint M75 (12/20(24)kV)
| Parts | Inner joint, Outer joint, Protolin resin, Lovisil silicone, separator set, earth screen, closing foam, tape, connector(s), cable cleaning module |
|---|---|
| Origin | Netherlands |
| Packaging | Box |
| Shelf life | 24 months |
| Length (mm) | 1062 |
| Width (mm) | 232 |
| Height (mm) | 253 |
