| Application area | Type | Cable | Conductor cross-section (mm²)* | Insulation diameter | Max. outer sheath diameter (mm) |
|---|---|---|---|---|---|
| 12 kV | R50 | Polymeric XLPE/EPR/HPTE | 95 - 240 | N/A | 24 - 50 |

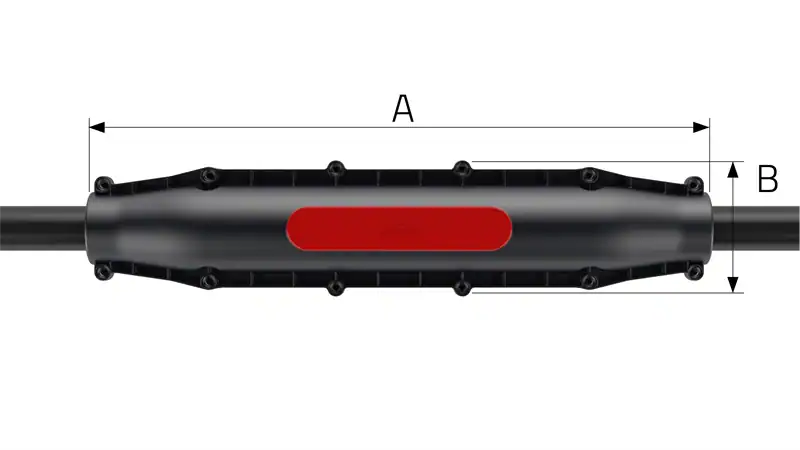

| Dimension A | Dimension B | Test certificates | |
|---|---|---|---|
| 580 | 140 |  | CENELEC HD 629.1 CENELEC HD 629.1 water pressure 2 bar EN 60455-3-8 |
* Please note: the diameter of the outer sheath and the supplied cable modules is decisive.
LoviX® Straight Joint R50 (6/10(12)kV)
| Parts | Outher ABS shell, mastic tape, coldshrink body, connector, roll spring, Protolin resin |
|---|---|
| Origin | EU |
| Packaging | Box |
| Shelf life | 24 months |
| Quantity | 1 |
| Length (mm) | 600 |
| Width (mm) | 294 |
| Height (mm) | 178 |
| Gross weight (kg) | 7,884 |
